Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback by pushing the button on the guide and pushing the head restraint down.
2. Lower the outboard head restraints by pulling on the release strap marked “1” located on the outboard side of the head restraint.

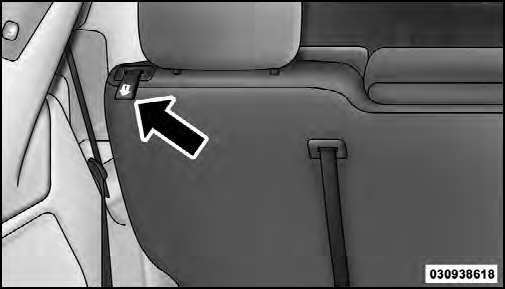

Head Restraint Release Strap “1”
3. Pull release strap marked “2” located on the rear of the seat to lower the seatback.

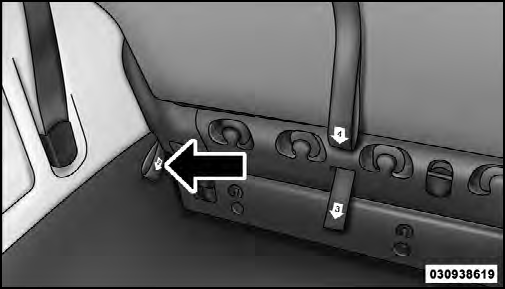

Release Strap “2”
4. Pull release strap marked “3” to release the anchors.

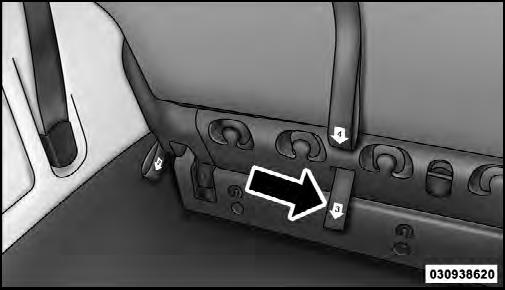

Release Strap “3”
5. Pull release strap marked “4” and tumble the seat rearward into the storage bin.

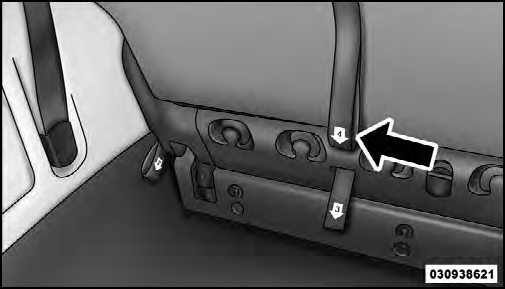

Release Strap “4”

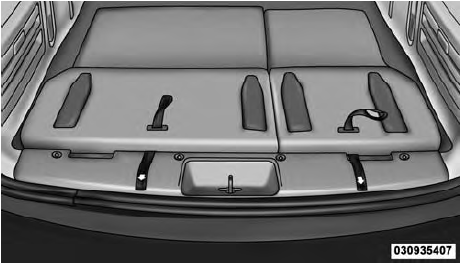

Stowed Third Row Seat
